Description
4 Pack 3.2V 25Ah LiFepo4 Prismatic Lithium Battery

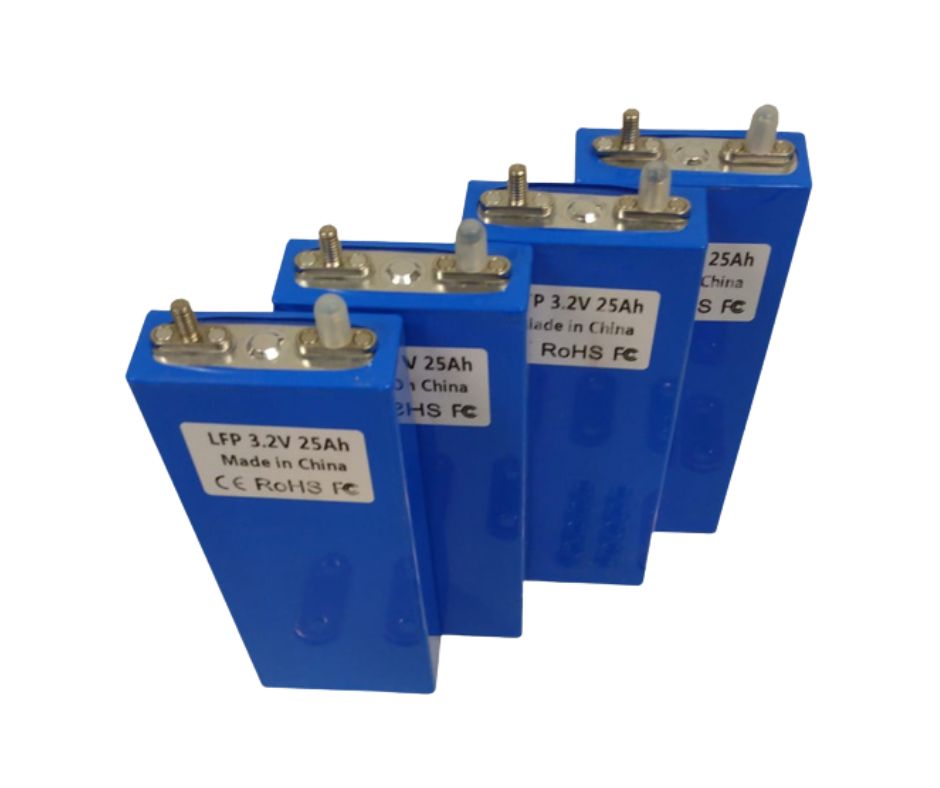

25Ah Prismatic Cells
| Condition | UNITS |
|---|---|
| Maximum Charging Voltage | 3.65V |
| Nominal Voltage | 3.2V |
| Rated Capacity | 25Ah |
| Standard Charging Current | 0.5C |
| Maximum Charging Current | 1C |
| Discharge Cut off Voltage | 2.5V |
| Operating Temperature | Charge: 0℃ – 45℃
Discharge: -20℃ – 60℃ |
| Storage Temperature | 15℃ – 35℃ |
| AC Impedance Resistance (1KHz) | ≤2.0 mΩ |
| Size | Thickness: 27.2 mm
Width: 70.2 mm Length: 180.0 mm |
| Weight | Approx. 0.64kg per cell |
| Data Sheet | Specifications of 25Ah prismatic cells |
