Samsung 94Ah 3.7V Li-Ion Cells

$61.75

Samsung 94Ah 3.7V Li-Ion Cells

11 in stock

SKU: Samsung 94Ah Categories: , Tags: , ,

Description

Samsung 94Ah 3.7V Li-Ion Cells

Samsung 94Ah

Item
Parameter Specification
Battery
Lithium ion NCM Battery
Nominal Capacity
94Ah
Nominal Voltage
3.68 V
Internal Resistance
≤0.75mΩ
Energy
345wh
Charging(CC-CV)
Recommend Constant Current
72A
Charging Upper Limit Voltage
4.15V
Discharging
Max Continuous Discharge Current
150A
Discharging Cut-off Voltage
2.7v
Recommended SOC Usage Window
SOC: 10%~90%
Operation Thermal Ambient
Charging
0°C ~65°
Discharging
-20°C ~ 55°C

Storage Thermal Ambient

Short-term (within 1 month)
-20°C ~ 65°C
Long term (within 1 year)
-20°C ~55°C
Storage Humidity
<70%
Battery Weight
74 Ounce
Battery Dimension
173*125*45mm





https://srikobatteries.com/product/samsung-94ah-3-7v-li-ion-cells/

Additional information

Weight 77 oz
Dimensions 20 × 7 × 3 in

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Bob Trotter
Very happy with these

Have only charged these to around 3.83v per cell for storage and have yet to capacity test these cells, but so far I'm impressed. My Revolextrix hobby grade charger was showing internal resistance values as low as 0.4 to 0.6ohms despite only charging at a modest 12 to 15 amps. As I understand it, higher charging currents give even lower IR readings.

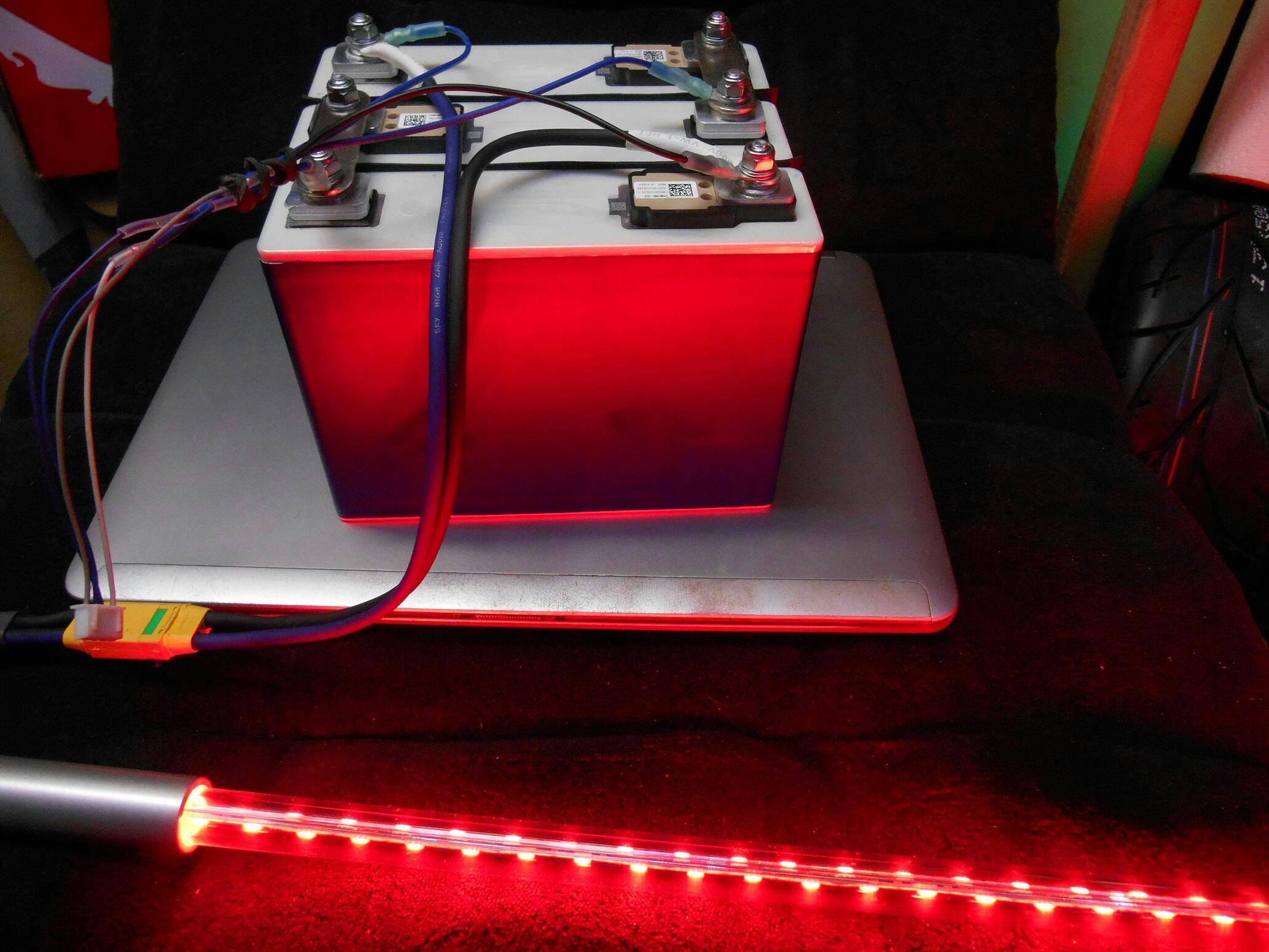

Cells arrived with M6 posts already installed and some plastic insulator caps top and bottom. Sides were already covered with black vinyl sticker sheet but of course I had to dress mine up a bit more with some dark blue vinyl wrap. Btw if you're shopping for battery lugs, 1/4" is just slightly larger than M6 and works well. Hope this helps.
